Buyer’s guide

Lift & Slide vs Standard Sliding Doors

Compare how each opening operates, the hardware questions that matter and what to confirm for large glazing.

Understand what the operating hardware changes

Both systems move a panel horizontally, but the operating hardware can differ. In a lift-slide system, compatible hardware lifts the panel for movement and lowers it at the closed position; actual mechanisms and seals vary by product.

Simplified schematic comparing a sliding panel on running gear with a lift-slide panel operated by compatible lifting hardware. — Illustration only; not to scale, a product drawing or evidence for a specific series.

Supplied product reference

Look for the operating mechanism

The photographs identify the general product context only; series, configuration, installation and testing require separate confirmation.

Wide aluminium sliding-door sample photographed in a showroom — Photographed door sample; the exact series and lift-slide mechanism are not identified.

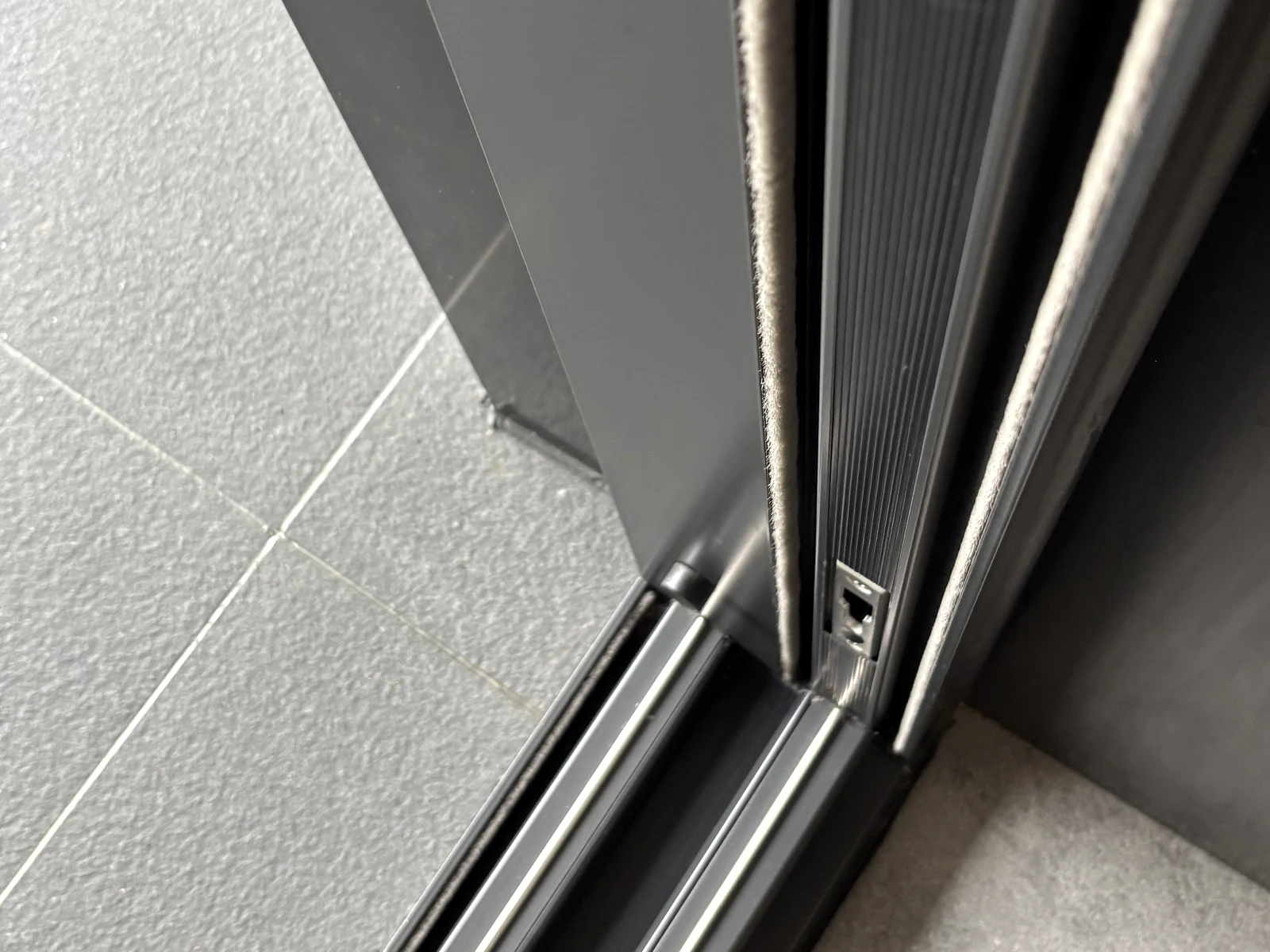

Close photograph of a supplied sliding-door track and frame detail — Product detail reference; the mechanism and series are unconfirmed.

Selection checklist

Compare movement, handling and evidence

Standard sliding operation

A moving sash travels along its track on rollers or other running gear. The frame, meeting stiles, brush or compression seals, locks and threshold depend on the selected system. Confirm how it drains and how the panel is serviced.

Lift-slide operation

A handle or gear can actuate a lift mechanism that transfers the panel onto running gear for movement, then lowers it to the closed position. Ask which hardware is supplied and how the operating sequence engages the seals. The concept diagram is generic.

Compare the opening, not the label

Review clear opening, number and arrangement of panels, panel handling, threshold, track cleaning, drainage, locking points, screen arrangement and service access. Request system-specific drawings and test evidence where required.

Common questions

Questions about the operating system

Does a wide glazed opening prove it is lift-slide?

No. A photograph of a wide opening does not identify the hardware. Confirm the model, handle, track and operating sequence.

Which option handles a large panel better?

Capacity depends on the exact rollers, frame, glass, panel dimensions and configuration. Use the product-specific hardware and test documentation.

Are the thresholds interchangeable?

No. Threshold, drainage and accessibility details are system-specific and need to be coordinated with the drawings and site conditions.

Technical references

General guidance; confirm current project requirements and selected product evidence.

Lift-slide mechanism example from a system manufacturer
